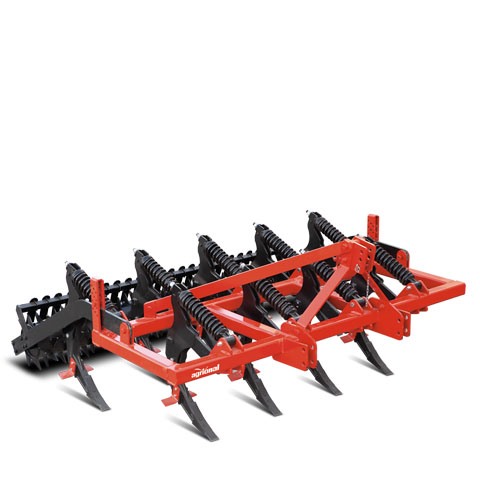

Spring chisel is used in processing of the soil without having the need to use plow on soil after harvest. It is a suspended machine that processes soil having some clods during the arid months of summer when working with plow is impossible and it breaks the lower layer of the plow considering the shape/structure of the legs.

High work depth soil processing can be done with chisel. Therefore by preventing the airing of the soil and rain water staying on the surface allows water to work its way through the base of the soil thusly preventing soil from losing its moisture and ensures that the roots of plants work their way down to the base by breaking the hard layer.

In addition, its roller connected to the chassis simultaneously pressing the soil at the time when discs lift the soil minimizes the loss of moisture after process.


  AG-CHS5AG-CHS7AG-CHS59AG-CHS11AG-CHS13AG-CHS15AG-CHS17
Number of TinePcs57911131517
Working Width cm130210243293343393443
Total Width cm157193270320370420470
Length Without Rollercm188188188188188188188
Length With Rollercm250250250250250250250
Total Height cm138138138138138138138
Weight Without RollerKg57080010301260148517101940
Weight With RollerKg740103513301630192022102510
Power RequirementHp60 - 7070 - 8080 - 9090 - 100100 - 110110 - 120120 - 130
