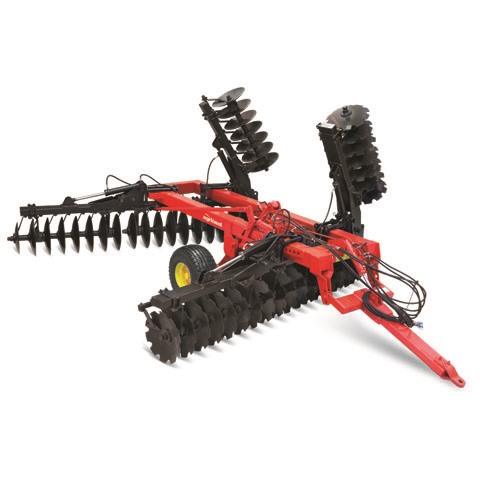

Hydraulic lift foldable v type disc harrow is a trailing type machine which is used to dissect plant residues (corn, sunflower, wheat etc.) and weed; and to break duff layer.  It prepares the field directly for planting by harrowless taming without using any other agricultural machine in dry seasons where ploughs can not enter after the harvest and it may be used to tame the soil including intensive humidity as well.

Model LGD KV type offset disc harrows prevents wind and water erosion while ploughing the stubble  due to the movement with hydraulic system and having multidirectional movement capacity.  It provides the wheel to move on field level by the axle mechanism on the wheel and thereby working depth may be adjusted efficiently.  It has a work depth more than soil culvitation machines.  It is more economical than other soil cultivation machines with higher operation speed and more work depth.  Due to these features, fuel, time, workmanship and spare part costs are less. It reduces the share of soil cultivation within total cost. Hydraulic cylinders are used to carry the tools which have a work width over three meters and to close and open the wings according to the work and road condition. Thereby, it may be carried easily in a folded position in highroads and narrow roads.

  AG LGD KV-36AG LGD KV-40AG LGD KV-44AG LGD KV-48AG LGD KV-52AG LGD KV-56AG LGD KV-60AG LGD KV-64AG LGD KV-68AG  LGD KV-72
Disc NumberPcs36404448525660646872
Disc Diametermm560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5560 x 4,5
Dist. Between Disccm22222222222222222222
No.Of Beds On CrankPcs12161616161616202024
Working Widthcm396440484528572616660704748792
Total Widthcm420464508552596640684728772816
Total Lengthcm594594594594594594594594594594
Total Heightcm148148148148148148148148148148
Frame Sizecm200x200x8200x200x8200x200x8200x200x8200x200x8200x200x8200x200x10200x200x10200x200x10200x200x10
Weight 560 mm DiscKg3900411043304540478049705210545056905980
Weight 610 mm DiscKg3990421044304650490051005350560058506150
Weight 660 mm DiscKg4200444046804930520054205690597062406560
Power RequirementHp150-160170-180190-200210-220230-240250-260270-280290-300310-320330-350
