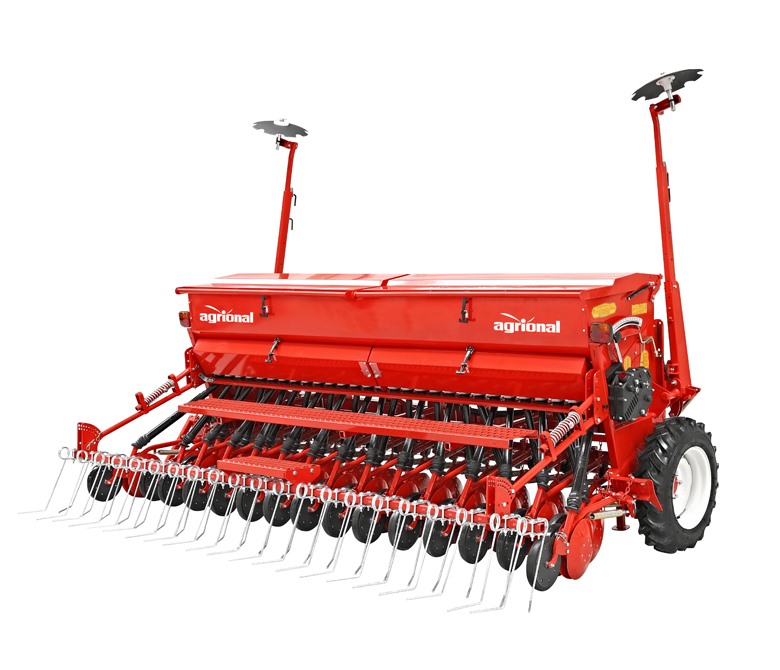

Agrional Mounted Mechanical Seed Drill is a mounted type sowing machine which can precisely and properly sow every kind of grain seeds (wheat, barley, rye, rapeseed, oats, peas, soybeans, alfalfa) on the row. In addition, it can successfully sow small vegetable seeds such as spinach and parsley. Sowing units can be produced with double discs or Axe type. There are models with fertilizer and without fertilizer. This is a seeder which can sow on ridge and flat land. Seeds are delivered in desired amount by adjusting with gearbox.


It has adjustable sowing rate, 2 - 450 kg/ha.

It’s easy adjustable, strong and useful machine.

It can sow on all kinds of land; ridge and flat land.

Sowing units are designed to apply the same pressure on ground surface at any height, thus, it obtains uniform planting pattern.

As all seeds fall into the same depth, it ensures simultaneous germination.

It can sow at minimum 12,5 cm distance between rows.

Sowing units can be mounted or demounted when required.

Precision and easy sowing norm can be adjusted, thanks to changeable gearbox. Gearbox runs quietly.


Rear covers are with spring.

Hydraulic marker system is available.

It’s a machine with high work efficiency.

It can be produced with fertilizer or without fertilizer.

Sowing units can be Axe type or double disc type according to demand.

You can adjust desired seed amount per decare, thanks to sowing test before sowing. According to demand, all marking can be adjusted with row marker. Press adjustments of sowing units can be done separately.


ModelWorking WidthCoulter QuantityDistance Between RowsSeed Tank Volume Average Weight With FertilizerWidthLengthHeight From TankHeight From MarkerTire DimensionsRequired Power
 mmpcscmltkgmmmmmmmm hp
AGM-HMY 212520211204738202060255014102150500x1560
AGM-HMY 253000251205909602060305014102400500x1570
AGM-HMY 2934802912070711202060360014502400600x1680
AGM-HMY 3339603312082512052060410014502650600x1690
< >
